Volkswagen ID.4: Accelerator pedal

Volkswagen ID.4 (E21) 2021-2025 Service Manual / Electric drive EIP220, EIA200, EIA210 / Electric drive systems / Accelerator pedal

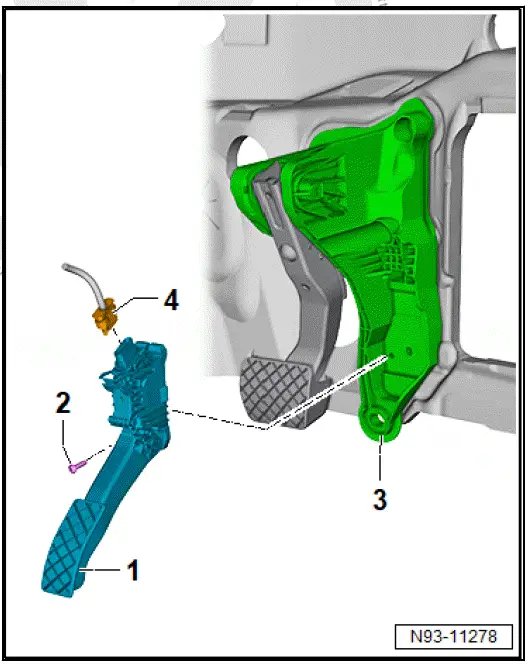

 Assembly overview - accelerator module

Volkswagen ID.4.  Assembly overview - accelerator module

  1. Accelerator pedal module - GX2-
  • ⇒ Rep. gr. 93 ; Removing and installing accelerator pedal module [GX2]
  1. Bolt
  • 3.5 Nm
  1. Mounting bracket
  2. Electrical connector

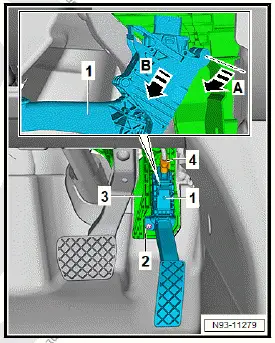

Removing and installing accelerator pedal module [GX2]

Removing

  • Disconnect electrical connector -4-.
  • Unscrew bolt -2-.
  • Swing accelerator pedal module - GX2- -1- in direction of -arrow A-, and remove it from mounting -3- in direction of -arrow B-.

Volkswagen ID.4. Removing and installing accelerator pedal module [GX2]

Installing

Install in reverse order of removal, observing the following:

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - accelerator module
