Volkswagen ID.4: Cleaning and changing wiper blades

Wiper blades with a graphite coating are installed at the factory. The graphite coating allows the wiper blade to glide easily over the window. A damaged graphite coating creates an increased noise level when wiping the window.

Check the condition of the wiper blades regularly. If wiper blades are rubbing, replace them if they are damaged or clean them if they are dirty → .

Damaged wiper blades should be replaced immediately. Wiper blades can be obtained from suitably qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Cleaning the wiper blades

Windshield wiper: Move the windshield wiper arms into the service position before lifting.

1. Lift the wiper arms, making sure to only hold the wiper arms in the area where they attach to the wiper blade.

2. Clean the wiper blades carefully with a damp sponge → .

3. Place the wiper arms carefully on the windshield.

Changing the windshield wiper blades

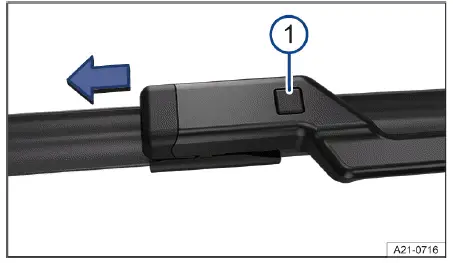

Fig. 1 Changing the windshield wiper blades.

1. Wiper blade release button.

1. Move the windshield wiper arms into the service position before lifting.

2. Lift the wiper arms, making sure to only hold the wiper arms in the area where they attach to the wiper blade.

3. Press and hold the release button and remove the wiper blade at the same time in the direction of the arrow → fig. 1 -1-.

4. Insert a new wiper blade of the same length and type on the respective wiper arm until it engages.

5. Place the wiper arms carefully on the windshield.

Changing the rear window wiper blade

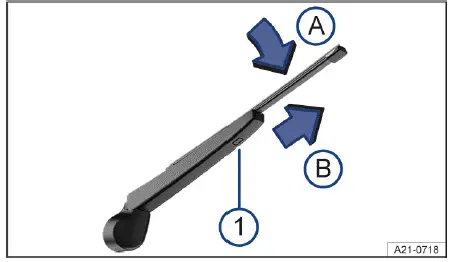

Fig. 2 Changing the rear window wiper blade.

1. Wiper blade release button.

1. To lift a windshield wiper arm, hold it only in the area where it attaches to the wiper blade.

2. Lift the wiper arm and fold it out.

3. Press and hold the release button → fig. 2 -1-.

4. Tilt the wiper blade toward the wiper arm → fig. 2 A while removing it in the direction of the arrow B. You may need to use more force to do this.

5. Slide a new wiper blade with the same length and design onto the wiper arm in the opposite direction to the arrow until it engages → fig. 2 B. For this to work, the wiper blade has to be folded out→ fig. 2 A.

6. Place the wiper arm carefully on the rear window.

WARNING

Worn or dirty wiper blades reduce visibility and increase the risk of accidents and serious injuries.

• Always clean dirty wiper blades.
• Always replace wiper blades if they are damaged or worn and are no longer cleaning the window glass sufficiently.

NOTICE

Cleaning wiper blades or door windows with unsuitable cleaning agents may cause damage.

• Do not clean the wiper blades and windshield and windows with fuel, nail polish remover, paint thinner, or other similar fluids.
• Do not clean the wiper blades with rough sponges or other sharp objects.

If there is wax residue on the windshield and rear window from car wash systems and other products, this can cause the windshield wipers to rub. Remove any wax residue with a special cleaner or cleaning towels.

Introduction

Before performing bulb replacement, check if it is an incandescent bulb or an LED light. Generally, light bulbs can be replaced by yourself. If the exterior lighting on your vehicle is equipped with LED technology, it is not possible to change LED lights or individual LEDs by yourself. The malfunction of individual LEDs may be an indication that more LEDs will malfunction. If this is the case, have the LEDs checked and/or replaced if necessary by suitably qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Driving with exterior lighting that is inoperative may be against the law.

Additional bulb specifications

Some bulbs may have certain manufacturer specifications that differ from conventional light bulbs. The respective name will be on the bulb socket or glass bulb.

WARNING

If the vehicle lighting is not used appropriately for the weather conditions, the road will not be illuminated sufficiently. The vehicle will not be visible to other road users or will be difficult to see. This can cause accidents and serious or fatal injuries.

• Regularly check the vehicle's lighting system and turn signals.
• Repair the lighting system and turn signals when necessary.

WARNING

Work in the hood space can result in accidents and serious injuries if bulb replacements are carried out incorrectly.

• Always follow the tasks described and observe the general safety precautions.
• Never perform a bulb replacement if you are not familiar with the required activities.
• If you are not sure how to carry out a bulb replacement, have the work required carried out by suitably qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

WARNING

During the bulb replacement, the sharp-edged parts of bulb housings and hot or exploding bulbs can cause serious injuries.

• Only change bulbs when they have cooled down completely.
• Always protect your hands during bulb replacement.

NOTICE

Water entering the headlight housing can damage the electrical system.

• After a bulb replacement, always fit the covers on the headlight housing.
• After installation, always check that the covers have been secured correctly.
