Volkswagen ID.4: Correct seating position

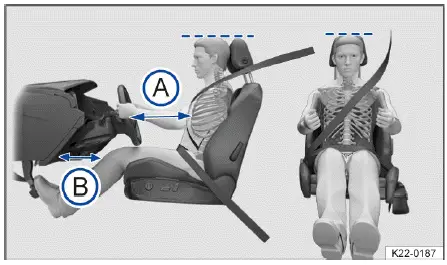

Fig. 1 General example: correct distance between the driver and the steering wheel, correct safety belt routing and correct head restraint adjustment.

The correct seating positions for the driver and passengers are specified in the information that follows.

If individuals cannot achieve the correct seating position due to physical conditions, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility for more information about possible special modifications. The safety belt and airbags only provide the optimum protection when vehicle occupants are seated in a correct seating position. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

For your safety and to reduce the risk of injuries in the event of a sudden braking maneuver or accident, Volkswagen recommends the following seating positions:

The following applies to all vehicle occupants:

• Adjust the head restraint so that the upper edge of the head restraint is in line with the upper portion of the head as much as possible, but not lower than eye level. Position the back of the head as close as possible to the head restraint → fig. 1.
• For shorter individuals, slide the head restraint all the way downward, even if the head is then below the upper edge of the head restraint.
• For taller individuals, move the head restraint upward all the way.
• Always keep both feet in the footwell.
• Adjust and fasten the safety belts correctly.

The following additional points apply to the driver:

• Adjust the forward/back position of the driver seat so that you can press the pedals while your legs are slightly bent and there is at least 10 cm (around 4 inches) of space between the instrument panel and your knees → fig. 1 B.
• Adjust the driver seat so that the top point of the steering wheel can be reached.
• Position the seat backrest in an upright position, so that your back rests completely on the seat backrest.
• Adjust the seat so that the distance between the steering wheel and your chest is at least 25 cm (around 10 inches) → fig. 1 A and you can hold the steering wheel firmly at the sides with both hands and your elbows slightly bent.
• When adjusted, the steering wheel must always face your chest and not be directed toward your face.

The following additional points apply to the front passenger:

• Position the seat backrest in an upright position, so that your back rests completely on the seat backrest.
• Move the front passenger seat back as far as possible so that the airbag can provide optimum protection if it deploys.

Introduction

Safety belts that are fastened correctly hold vehicle occupants in the correct position during braking maneuvers or in a collision, in order to provide the maximum protection.

WARNING

The risk of serious and fatal injuries may increase if the safety belts are not worn or are worn incorrectly.

• Before every trip, everyone in the vehicle must seat themselves correctly, fasten the safety belt that belongs to the seat they are using, and keep it fastened while the vehicle is in motion.
• Secure children before and during every journey in the vehicle with a child restraint system that is appropriate for their weight and height and with the safety belt used correctly.
• Always insert the buckle tongue into the belt buckle that belongs to that seat and let it engage securely. Using a buckle from another seat reduces the protection provided by the safety belt and can cause serious injuries.
• Never unfasten the safety belt while the vehicle is in motion.
• Secure only one person with a safety belt.
• Never allow children or infants to ride on anyone's lap and never strap children or infants to another person with the same safety belt.
• Do not wear extremely bulky, loose clothing in the vehicle, such as a coat over a sports jacket, because this could impair the fit and function of the safety belt.

WARNING

The risk of serious and fatal injuries increases if the safety belts are damaged. If the belt webbing or other parts of the safety belt are damaged, the safety belts could tear during a collision or sudden breaking maneuver.

• Never allow safety belts to become caught in the door or the seat mechanisms because the belts could be damaged.
• If there is damage to the belt fabric, the belt connections, the automatic belt retractor or the buckle, have the affected safety belt or belt fastening element replaced immediately by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. The authorized Volkswagen dealer or authorized Volkswagen Service Facility must use the correct parts for the vehicle, equipment and model year. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
• Never try to repair, modify, or remove the safety belts or belt fastening elements yourself. Have all repairs to safety belts, belt retractors and buckle components performed only by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. The authorized Volkswagen dealer or authorized Volkswagen Service Facility must only replace the safety belt with a safety belt approved for the seat. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
• Have safety belts that are stretched during a collision replaced by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility. It may be necessary to replace them even if there is no visible damage. Check the safety belts' anchorage as well.

WARNING

Incorrect handling of the safety belts increases the risk of severe or fatal injuries.

• Check the safety belts and associated components regularly to ensure they function correctly.
• Always keep the safety belts clean.
• Never allow foreign objects or fluid to enter the openings in the safety belt latches and belt buckles. This could impair the function of the safety belt latch openings, belt buckles and safety belts.
• Never pinch the safety belt. Never damage the safety belt or allow it to rub against any objects with sharp edges.
