Volkswagen ID.4: Gearbox housing, clutch housing

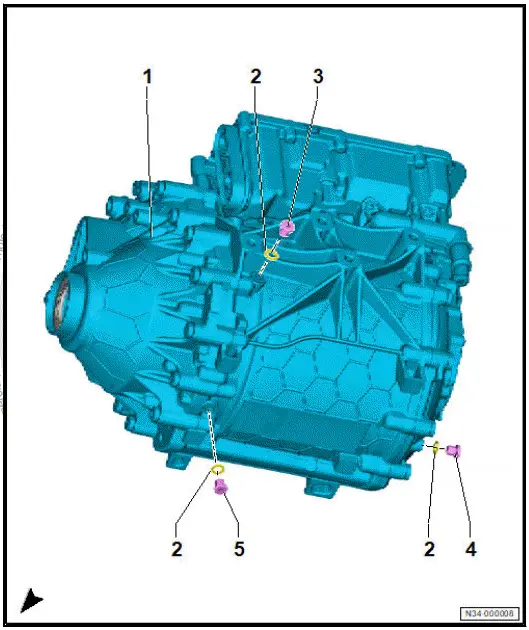

Assembly overview - gearbox housing

1. Three-phase current drive 2 - VX97- with gearbox
2. Seal

• Renew after removing

3. Gear oil filler hole plug

• Renew after removing
• 15 Nm

4.  Gear oil drain plug

• Renew after removing
• 15 Nm

5. Gear oil drain plug

• Renew after removing
• 15 Nm

Gear oil

Checking gear oil level

Checking the gear oil level is not intended for the time being.

Draining and filling gear oil

Draining and filling gear oil is not intended for the time being. It is not necessary to change the gear oil.
