Volkswagen ID.4: Longitudinal member

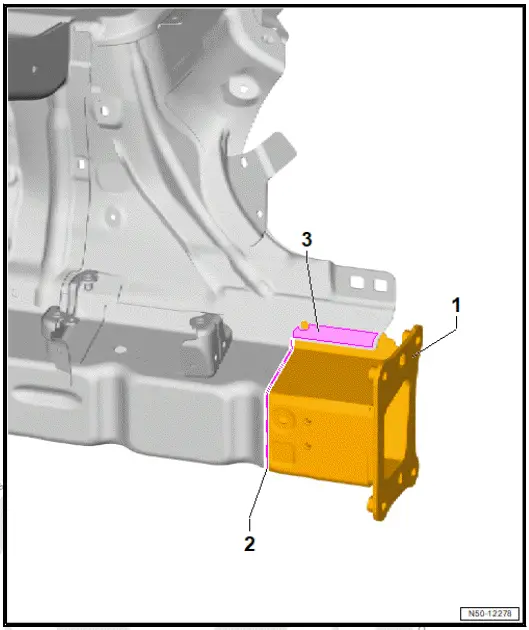

Assembly overview - front left longitudinal member, part section

1. Front longitudinal member

• ⇒ Rep. gr. 50; Renewing front left longitudinal member, part section

2. Separating cut
3. Bonded area

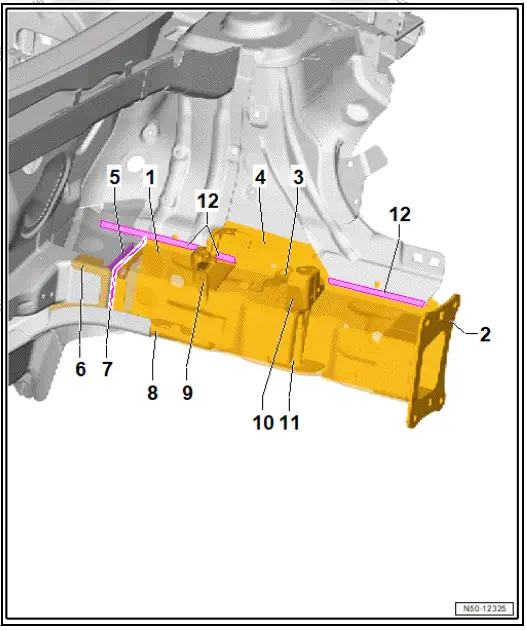

Assembly overview - front left longitudinal member, part section (second separating cut)

1. Front longitudinal member

• ⇒ Rep. gr. 50; Renewing front left longitudinal member, part section (2nd separating cut)

2. Cross panel for front longitudinal member
3. Retainer for brake hose
4. Cover plate for front longitudinal member
5. Moulded foam insert

• ⇒ Rep. gr. 00; Moulded foam inserts

6. Web plate
7. Separating cut
8. Web plate for front longitudinal member
9. Rear battery tray
10. Front battery tray
11. Mounting bracket for subframe
12.  Bonded areas
