Volkswagen ID.4: Seam seals, doors

The overview is shown for the left side of vehicle as an example.

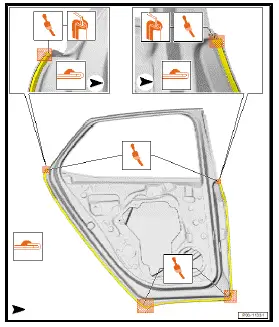

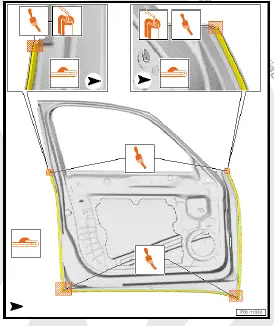

Rear door

Fine seam seals: Fine seam seals require that the sealant extend at least 3 mm from the seam in each direction and must have a height of 2 mm.

Sealing the folded seam groove: The marked areas must be closed following application of sealant to the folded seam groove.

Brushing seals: Following application, brush sealant in the marked areas to uniformly cover surface.

When brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed. The metal must be covered with a sufficiently thick layer of PVC.

Rear door

Fine seam seals: Fine seam seals require that the sealant extend at least 3 mm from the seam in each direction and must have a height of 2 mm.

Sealing the folded seam groove: The marked areas must be closed following application of sealant to the folded seam groove.

Brushing seals: Following application, brush sealant in the marked areas to uniformly cover surface.

When brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed. The metal must be covered with a sufficiently thick layer of PVC.

Seam seals, rear wheel housing

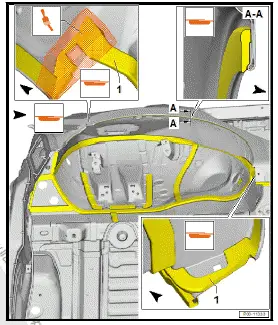

Rear left wheel housing

Coarse seam seals: Coarse seam seals require that the sealant be applied at least 20 mm wide and 2 mm high.

Brushing seals: Following application, brush sealant in the marked areas to uniformly cover surface.

When brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed. The metal must be covered with a sufficiently thick layer of PVC.

Inner rear wheel housing area: Seal the folded seam groove and gap completely to ensure tightness.

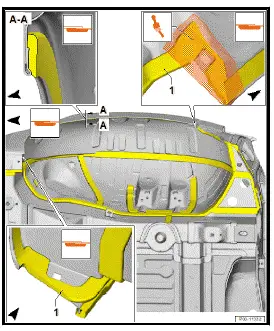

Rear right wheel housing

Coarse seam seals: Coarse seam seals require that the sealant be applied at least 20 mm wide and 2 mm high.

Brushing seals: Following application, brush sealant in the marked areas to uniformly cover surface.

When brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed. The metal must be covered with a sufficiently thick layer of PVC.

Inner rear wheel housing area: Seal the folded seam groove and gap completely to ensure tightness.
