Volkswagen ID.4: Towing bracket

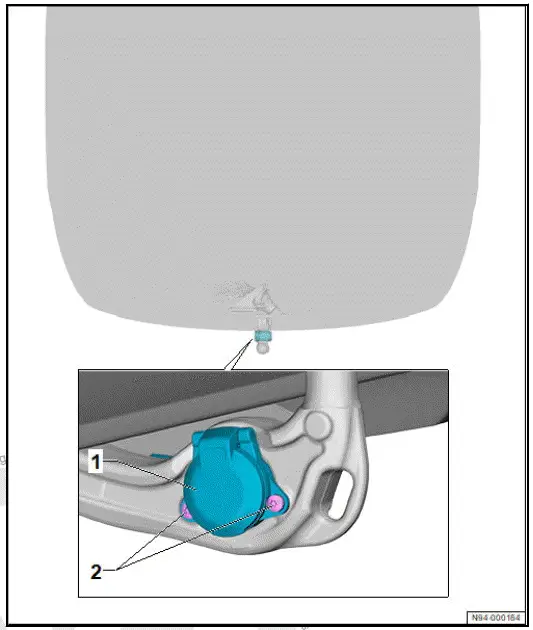

Assembly overview - towing bracket socket

1. Trailer socket - U10-

• ⇒ Rep. gr. 94 ; Removing and installing trailer socket [U10]

2. Bolt

• Qty. 2
• 5 Nm

Removing and installing trailer socket [U10]

Trailer socket - U10- is referred to hereafter as socket.

Removing

• Unscrew bolts -1-.
• Remove socket -2-.

Note

Risk of interchanging pin assignment. Refer to the applicable current flow diagram to obtain information on the exact pin assignment.

Take photographs of the assignment.

Disconnect electrical wiring.

Detach socket -2-.

Installing

Install in the reverse order of removal, observing the following:

Tightening torques

• ⇒ Rep. gr. 94 ; Assembly overview - towing bracket socket
