Volkswagen ID.4: Wheel housing liner

• Assembly overview - front wheel housing liner
• Assembly overview - rear wheel housing liner
• Removing and installing rear wheel housing liner
• Removing and installing side member trim

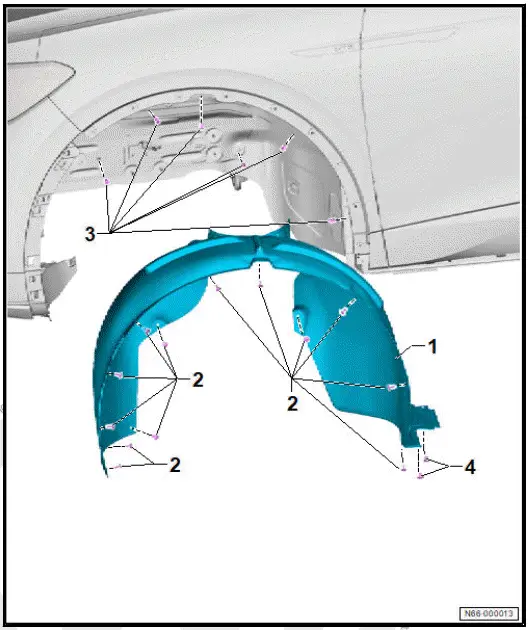

Assembly overview - front wheel housing liner

Overview shown for left side of vehicle as an example

1. Front wheel housing liner

• ⇒ Rep. gr. 66 ; Removing and installing front wheel housing liner

2. Bolt

• Quantity varies depending on model
• 2 Nm

3. Expanding nut

• Quantity varies depending on model

4. Spreader rivet or clip

• Fastener varies depending on model
• Qty. 2

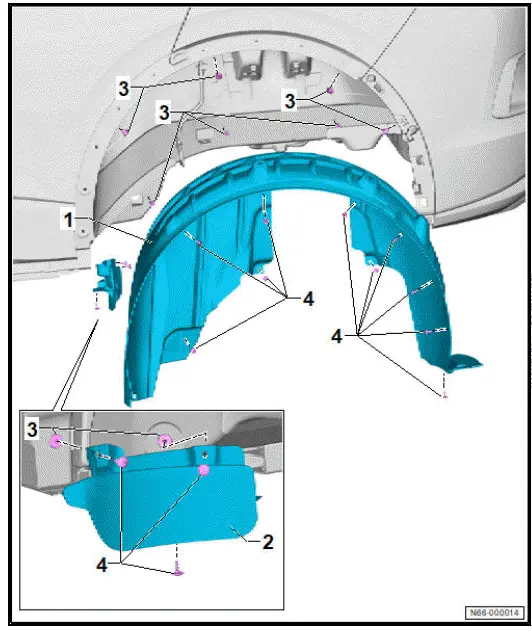

Assembly overview - rear wheel housing liner

1. Front wheel housing liner

• ⇒ Rep. gr. 66 ; Removing and installing front wheel housing liner

2. Bolt

• Quantity varies depending on model
• 2 Nm

3. Expanding nut

• Quantity varies depending on model

4.  Spreader rivet or clip

• Fastener varies depending on model
• Qty. 2

Removing and installing front wheel housing liner

Overview shown for left side of vehicle as an example

1. Rear wheel housing liner

•  ⇒ Rep. gr. 66 ; Removing and installing rear wheel housing liner

2. Side member trim

• Fitted on selected models
• ⇒ Rep. gr. 66 ; Wheel housing liner; Removing and installing side member trim

3. Expanding nut

• Quantity varies depending on model

4. Bolt

• Quantity varies depending on model
• 2 Nm

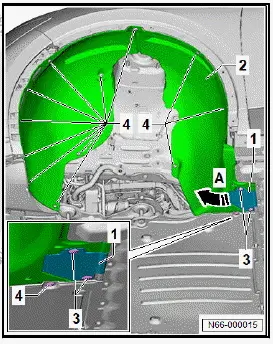

Removing and installing rear wheel housing liner

Removal and installation are described for the left side of vehicle as an example.

For reasons of clarity, the front axle is not shown in the illustrations of the following work procedures.

Location and number of bolts and expanding nuts vary depending on model.

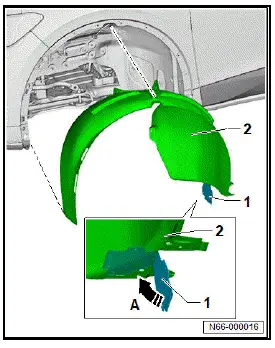

Removing

• Lever off spreader rivets -3-.
• Unscrew bolts -4-.
• Unclip flap -1- in direction of -arrow A-.
• Pull out front wheel housing liner -2-.

Installing

Install in reverse order of removal, observing the following:

• Clip in flap -1- in direction of -arrow A-.
• Align front wheel housing liner -2-.

• Secure flap -1- with spreader rivets -2-.

Tightening torques

• ⇒ Rep. gr. 66 ; Assembly overview - front wheel housing liner

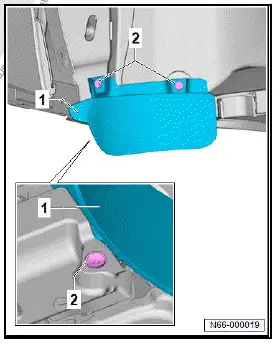

Removing and installing side member trim

Removal and installation are described for the left side of vehicle as an example.

Removing

• Detach rear wheel housing liner in area of side member trim ⇒ Rep. gr. 66 ; Removing and installing rear wheel housing liner .
• Unscrew bolts -2-.
• Remove side member trim -1-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

• ⇒ Rep. gr. 66 ; Assembly overview - rear wheel housing liner
