Volkswagen ID.4: Charging socket, with charging cable

Volkswagen ID.4 (E21) 2021-2025 Service Manual / Electric drive EIP220, EIA200, EIA210 / Electric drive systems / Charging socket, with charging cable

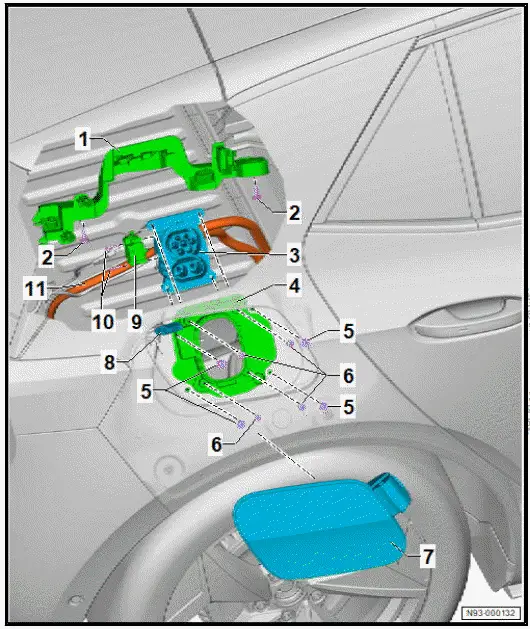

Assembly overview - charging socket

Volkswagen ID.4. Assembly overview - charging socket

  1. Bracket
  2. Bolt
  • Qty. 2
  • M6×20
  • 8 Nm
  1. High-voltage battery charging socket 1 - UX4-
  • With charging cable ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery charging socket 1 [UX4]
  1. Bracket
  2. Bolt
  • Qty. 4
  • M6×18
  • 8 Nm
  1. Bolt
  • Qty. 4
  • 8 Nm
  1. Charging flap unit
  • ⇒ General body repairs, exterior; Rep.gr. 55 ; Charging flap unit; Removing and installing charging flap unit
  1. LED module for charging socket 1 - L263-
  • ⇒ General body repairs, exterior; Rep.gr. 55 ; Charging flap unit; Removing and installing LED module for charging socket 1 [L263]
  1. Actuator for high-voltage charging socket lock 1 - F498-
  • ⇒ Rep. gr. 93 ; Removing and installing actuator for high-voltage charging socket lock 1 [F498]
  1. Bolt
  • Qty. 2
  • 1.2 Nm
  1. Charging cable
  • With high-voltage battery charging socket 1 - UX4-

Removing and installing high-voltage battery charging socket 1 [UX4]

The high-voltage battery charging socket 1 - UX4- will henceforth be referred to as "charging socket".

Removing

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energise the high-voltage system.
  • ⇒ Rep. gr. 93 ; De-energise high-voltage system .
  • Detach right luggage compartment side trim ⇒ General body repairs, interior; Rep. gr. 70 ; Luggage compartment trims; Removing and installing luggage compartment side trim .

Note

The charging socket can only be removed in conjunction with the charging cable.

  • Detach manual release mechanism -2-.
  • Disconnect electrical connector -3-.
  • Release cable duct -1-.

Volkswagen ID.4. Removing and installing high-voltage battery charging socket 1 [UX4]

  • Remove charging flap unit ⇒ General body repairs, exterior; Rep. gr. 55 ; Charging flap unit; Removing and installing charging flap unit .
  • Remove rear right wheel housing liner ⇒ General body repairs, exterior; Rep. gr. 66 ; Wheel housing liner; Removing and installing rear wheel housing liner .
  • Remove rear underbody cladding ⇒ General body repairs, exterior; Rep. gr. 66 ; Underbody cladding; Removing and installing rear underbody cladding .
  • Remove rear centre underbody cladding ⇒ General body repairs, exterior; Rep. gr. 66 ; Underbody cladding; Removing and installing rear centre underbody cladding .

High-voltage battery, 55 and 62 kWh

  • Remove centre underbody cladding ⇒ General body repairs, exterior; Rep. gr. 66 ; Underbody cladding; Removing and installing centre underbody cladding .
  • Remove reinforcement for high-voltage battery body aperture ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, installed

All vehicles (continued)

  • Disconnect connector -1- on charging unit 1 for high-voltage battery - AX4- .
  • Separate connector -2- on high-voltage battery 1 - AX2-

Volkswagen ID.4. Removing and installing high-voltage battery charging socket 1 [UX4]

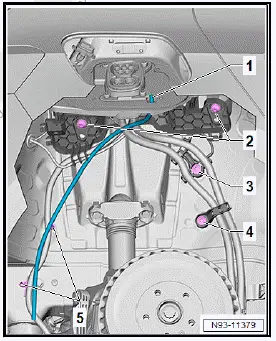

  • Remove hose -1-.
  • Unscrew bolts -2-.
  • Unscrew bolt -3-.
  • Unscrew bolt -4-.
  • Release wiring fasteners -5-.

Volkswagen ID.4. Removing and installing high-voltage battery charging socket 1 [UX4]

  • Lower rear axle in front area ⇒ Running gear, axles, steering; Rep. gr. 42 ; Rear axle; Lowering rear axle .
  • Remove charging socket with bracket.
  • Detach Bowden cable for manual release mechanism -1-.
  • Remove electrical wire -3- from guide.
  • Unscrew bolts -2-.
  • Detach charging socket from bracket.

    Installing

Volkswagen ID.4. Removing and installing high-voltage battery charging socket 1 [UX4]

Installing

Install in reverse order of removal, observing the following:

WARNING

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Have a high-voltage technician (HVT) or a high-voltage expert (HVE) re-energise the high-voltage system.
  • ⇒ Rep. gr. 93 ; Re-energise high-voltage system

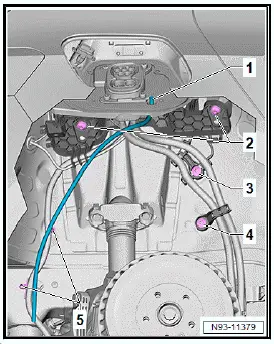

  • Tighten bolts -3- and -4-.

Volkswagen ID.4. Removing and installing high-voltage battery charging socket 1 [UX4]

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - charging socket

Removing and installing actuator for high-voltage charging socket lock 1 [F498]

The actuator for high-voltage charging socket lock 1 - F498- will henceforth be referred to as "actuator".

Removing

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energise the high-voltage system.

⇒ Rep. gr. 93 ; De-energise high-voltage system .

Note

The charging socket just needs to be loosened. It is not necessary to lower the rear axle.

  • Release charging socket ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery charging socket 1 [UX4] .
  • Detach Bowden cable for manual release mechanism -1-.
  • Unscrew bolts -3-.
  • Remove actuator -2-.

Volkswagen ID.4. Removing and installing actuator for high-voltage charging socket lock 1 [F498]

Installing

Install in reverse order of removal, observing the following:

  • When installing, make sure that the actuator makes proper contact with the contact surface and that the bolt mountings are not damaged.
  • Separate and join electrical wire according to instructions for wiring repairs ⇒ Electrical system; Rep. gr. 97 ; Wires; Repairing a 0.13 mm² to 6 mm² wire .

WARNING

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Have a high-voltage technician (HVT) or a high-voltage expert (HVE) re-energise the high-voltage system.

⇒ Rep. gr. 93 ; Re-energise high-voltage system .

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - charging socket
