Volkswagen ID.4: Potential equalisation lines

Volkswagen ID.4 (E21) 2021-2025 Service Manual / Electric drive EIP220, EIA200, EIA210 / Electric drive systems / Potential equalisation lines

Overview of fitting locations - potential equalisation lines, all-wheel drive

Overview of fitting locations - potential equalisation lines, all-wheel drive

Overview of fitting locations - potential equalisation lines

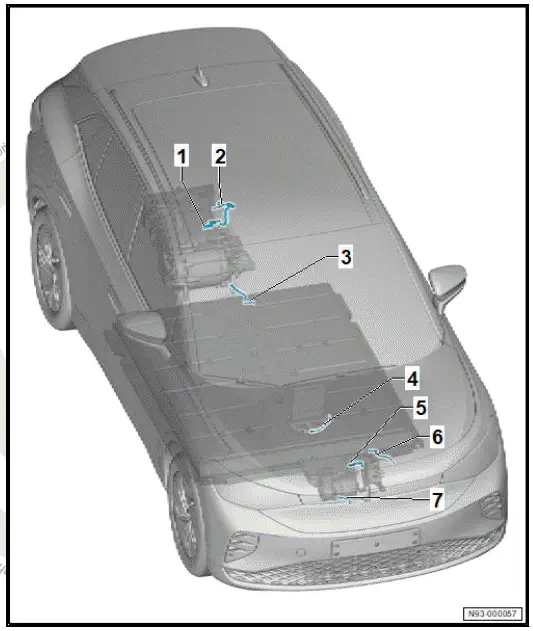

Volkswagen ID.4. Overview of fitting locations - potential equalisation lines

  1. Potential equalisation voltage converter - A19-
  • ⇒ Rep. gr. 93 ; Assembly overview - voltage converter
  1. Potential equalisation three-phase current drive - VX54-
  • ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, rear motor
  1. Potential equalisation charging unit 1 for high-voltage battery - AX4-
  • ⇒ Rep. gr. 93 ; Assembly overview - charging unit for highvoltage battery
  1. Potential equalisation of high-voltage battery 1 - AX2-
  • ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, removed
  1. Potential equalisation high-voltage heater (PTC) - ZX17-
  • ⇒ Heating, air conditioning; Rep. gr. 87 ; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]
  1. Potential equalisation three-phase current drive 2 - VX97-
  • ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, front motor
  1. Potential equalisation heater element (PTC) 3 - Z132-
  • ⇒ Heating, air conditioning; Rep. gr. 87 ; Coolant circuit; Removing and installing PTC heater element 3 [Z132], all-wheel drive
  1. Potential equalisation air conditioner compressor - VX81-
  • ⇒ Heating, air conditioning system; Rep. gr. 87 ; Air conditioner compressor; Assembly overview - air conditioner compressor

Overview of fitting locations - potential equalisation lines, rear-wheel drive

Overview of fitting locations - potential equalisation lines

Volkswagen ID.4. Overview of fitting locations - potential equalisation lines, rear-wheel drive

  1. Potential equalisation three-phase current drive - VX54-
  • ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, rear motor
  1. Potential equalisation charging unit 1 for high-voltage battery - AX4-
  • ⇒ Rep. gr. 93 ; Assembly overview - charging unit for highvoltage battery
  1. Potential equalisation of high-voltage battery 1 - AX2-
  • ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, removed
  1. Potential equalisation high-voltage heater (PTC) - ZX17-
  • ⇒ Heating, air conditioning; Rep. gr. 87 ; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]
  1. Potential equalisation voltage converter - A19-
  • ⇒ Rep. gr. 93 ; Assembly overview - voltage converter
  1. Potential equalisation heater element (PTC) 3 - Z132-
  • ⇒ Heating, air conditioning; Rep. gr. 87 ; Coolant circuit; Removing and installing PTC heater element 3 [Z132], rear-wheel drive
  1. Potential equalisation air conditioner compressor - VX81-
  • ⇒ Heating, air conditioning system; Rep. gr. 87 ; Air conditioner compressor; Assembly overview - air conditioner compressor
