Volkswagen ID.4: Eco assist

Eco assist helps drivers to think ahead and drive in an energy-saving manner by displaying information on the instrument cluster display depending on the situation.

Eco assist uses the navigation data from the Infotainment system and the sensors of its own assist systems. If route guidance is not active, the most probable route is used.

Eco assist depends on the equipment and is not available in all countries.

Driving with Eco assist

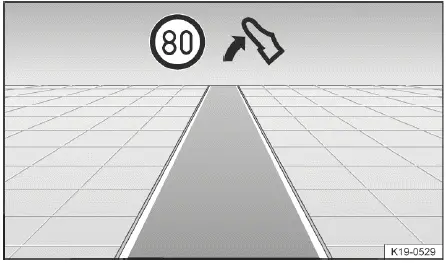

Fig. 1 Eco assist displays (General example).

If you are approaching speed limit or a road layout that requires attention on the route, the symbol and information about the type of event are shown in the instrument cluster display.

As soon as you remove your foot from the accelerator pedal, the vehicle adjusts recuperation and speed. The vehicle considers the selected driving mode and the distance from the event here.

The system does not use the vehicle brake. If you drive downhill, the system also cannot brake the vehicle sufficiently in all driving situations.

With an active system, eco assistance can increase the delay even without a displayed message and consequently adapt the speed to a recognized vehicle driving ahead.

By accelerating, you can override interventions by Eco assist at any time.

Displays

Depending on the driving situation, the following symbols are shown in the instrument cluster display:

Take your foot off the accelerator.

Vehicle driving ahead.

Intersection ahead.

Highway exit ahead.

Roundabout ahead.

Left turn ahead.

Right turn ahead.

Incline ahead.

Speed limit ahead, example.

The symbols shown here may deviate depending on the vehicle equipment. Symbols may also be modified or enhanced by a system update.

Switching on and off

You can switch Eco assist on and off in the Assistance systems menu in the Infotainment system.

Eco assist is automatically deactivated temporarily in the following cases:

• The Sport driving mode is activated.
• When driving with Adaptive Cruise Control (ACC) or the cruise control system.

Depending on the situation and vehicle handling, there may still be displays from Eco assist.

If the reason for the deactivation is no longer applicable, Eco assist is reactivated if it is switched on in the Infotainment system.

WARNING

The ECO assist is not a replacement for the driver's attention and works only within the system limitations. The ECO assist cannot detect all driving situations and may not react, or may react with a delay, or may react in a way that is not desired. If you are careless, there is a risk of accidents, serious injuries and death.

• Always stay attentive and do not rely solely on the system. The driver is always responsible for control of the vehicle.
• Always adapt your speed and driving style to the visibility, weather, road and traffic conditions.
• Note that road signs and traffic rules always have priority over driving recommendations.

Introduction

Adaptive Cruise Control (ACC) maintains your selected speed. When the vehicle approaches a vehicle driving ahead, the ACC adjusts the speed automatically and maintains your set distance to the vehicle driving ahead.

Does this vehicle have ACC?

The vehicle has ACC

If you can adjust ACC settings in the Assistance systems menu in the Infotainment system.

Speed range

You can set a speed greater than 20 km/h (15 mph).

Driving with ACC

You can override the ACC system at any time. The regulation function is canceled when you apply the brakes. When you accelerate, the regulation function is paused while accelerating and then resumed with the speed set.

If a trailer is hitched, ACC is less dynamic.

Driver intervention request

If automatic deceleration by the ACC

is not sufficient or the system limits are reached, the ACC will prompt you - with a message in the instrument cluster - to also apply the brakes. The red warning light will also turn on and a warning tone will sound. Take over steering and be ready to brake.

WARNING

ACC

is not a replacement for the driver's attention and works only within the system limitations. ACC cannot detect all driving situations and may not react, or may react with a delay, or may react in a way that is not desired. If you are careless, there is a risk of accidents, serious injuries and death.

• Always stay attentive and do not rely solely on the system. The driver is always responsible for control of the vehicle.
• Observe the system limitations (→ Adaptive Cruise Control (ACC) ).
• Always adapt your speed and distance to vehicles driving ahead based on the visual, weather, road, and traffic conditions.
• Take over steering immediately if a driver intervention prompt appears in the instrument cluster display or the deceleration by ACC is not sufficient.
• Apply the brakes if the vehicle continues to roll unintentionally, e.g. after a driver intervention prompt.
