Volkswagen ID.4: Fuses in the instrument panel

Volkswagen ID.4 2021-2024 (E21) Owners Manual / Fuses in the instrument panel

Left-hand drive vehicles: Opening the fuse box in the instrument panel

Volkswagen ID.4 - Fig. 1 Fuse box cover on the instrument panel

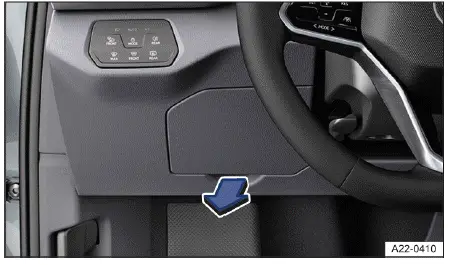

Fig. 1 Fuse box cover on the instrument panel on the driver's side (left-hand drive vehicles).

Removing the cover

1. Reach behind the cover and pull it off in the direction of the arrow→ fig. 1.

Fitting the cover

1. Position the cover starting with the opposite side and push it closed in the opposite direction to the arrow until you hear it click into place.

Right-hand drive vehicles: opening the fuse box in the instrument panel

Volkswagen ID.4 - Fig. 2 On the passenger's side: Fuse box in the instrument

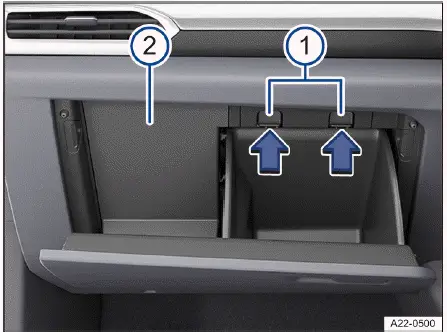

Fig. 2 On the passenger's side: Fuse box in the instrument panel (right-hand drive vehicles).

  1. Stop pin.
  2. Cover

Removing the cover

1. Open the glove compartment and empty it if necessary.

2. Push the catches in the direction of the arrow while at the same time opening the glove compartment further → fig. 2 -1-.

3. Reach to the side behind the cover and pull it backward→ fig. 2 -2-.

Fitting the cover

1. Reinsert the cover and press it forward until the cover is reengaged.

2. Close the glove box.
