Volkswagen ID.4: Fuse table for fuses in the instrument panel

Volkswagen ID.4 2021-2024 (E21) Owners Manual / Fuse table for fuses in the instrument panel

The list shows the fuse locations for the equipment relevant to the driver. The first column of the table contains the fuse location; the other columns include the rated current, fuse version and the protected equipment.

Depending on the country and the vehicle equipment, there may be differences from the fuse numbers and fuse locations listed in the table. If necessary, ask for the exact fuse assignment from suitably qualified professionals.

Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Fuse assignment

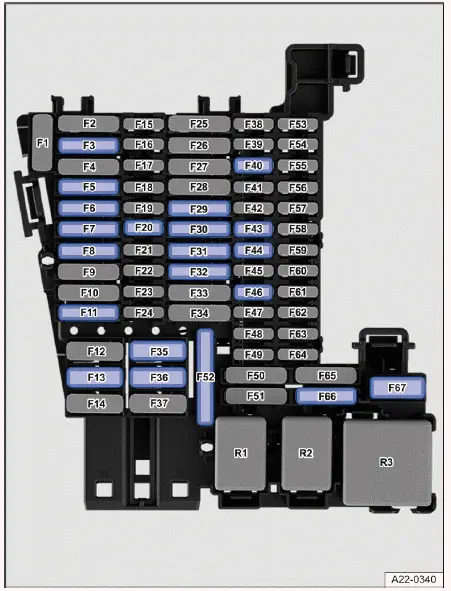

Volkswagen ID.4 - Fig. 1 Fuse assignment in the instrument panel.
Fig. 1 Fuse assignment in the instrument panel.

Fuse location → fig. 1 :

F5   25 Amp, ATO, exterior lighting on the left side.

F6   30 Amp, ATO, interior lighting.

F7   30 Amp, ATO, seat heating.

F13   40 A, MAXI+, central locking.

F20   10 Amp, MINI, telephone.

F30   20 A, ATO, Infotainment system scope.

F32   25 Amp, ATO, exterior lighting on the right side.

F35   40 A, MAXI+, rear seat heating.

F36   40 A, MAXI+, blower regulator.

F40   10 Amp, MINI, anti-theft alarm system.

F43   7,5 amp, MINI, climate control bar, rear window defroster relay.

F44   7.5 A, MINI, light switch (dipped beam), rain/light sensor, ambient lighting, ID. Light.

F46   10 Amp, MINI, Display, Infotainment system control panel.

F52   20 Amp, ATO, sockets.

F66   15 Amp, ATO, rear window wiper.

F67   30 A, MAXI+, rear window heating.

Fuse locations in vehicles with a factory-installed trailer hitch:

F3   25 A, ATO, control module for left trailer detection.

F11   15 A, ATO, control module for trailer detection.

F29   15 A, ATO, control module for trailer detection.

F31   25 A, ATO, control module for right trailer detection.

Power windows and seats can be protected by circuit breakers or control modules, which switch back on automatically several seconds after correcting the overload, for example when door windows are frozen shut.
