Volkswagen ID.4: Replacing blown fuses

Preparations

1. Deactivate drive-ready mode and switch off the lights and all other electrical equipment.

Detecting blown fuses

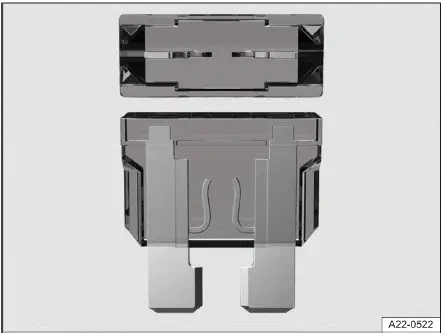

Fig. 1 Blown fuse (general example).

1. Shine a flashlight on the fuses.

A blown fuse can be recognized from above and from the side through the transparent casing, as its metal strip will be burnt through → fig. 1.

Fuse versions

• Standard flat connector fuse (ATO).
• Small flat connector fuse (MINI).
• Large flat blade fuse (MAXI or MAXI+).

Fuse color codes

Fuses (ATO - MINI - MAXI or MAXI+).

Color - Current rating

Black - 1 A

Purple - 3 A

Orange - 5 A

Brown - 7.5 A

Red - 10 A

Blue - 15 A

Yellow - 20 A

White or clear - 25 A

Green - 30 A

Light green - 40 A

Replacing fuses

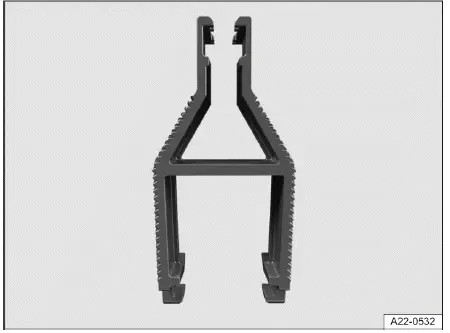

Fig. 2 Plastic pliers for removing or installing a fuse (general example).

1. If necessary, remove the plastic tongs from either the fuse box or the cover of the fuse box→ fig. 2.

2. Depending on the design of the fuse, slide the appropriately sized clamp on the plastic pliers onto the fuse from above or from the side.

3. Remove the fuse.

4. If a fuse is blown, replace with a fuse with the same rating (same color and same label) and the same size → .

5. After inserting the new fuse, place the plastic pliers back in the cover, if necessary.

6. Reinstall the cover or close the fuse box cover.

NOTICE

If a fuse is replaced by a fuse with a higher current rating, this could damage the electrical system in another location.

• Never replace a fuse with a fuse that has a higher current rating.
