Volkswagen ID.4: Horn

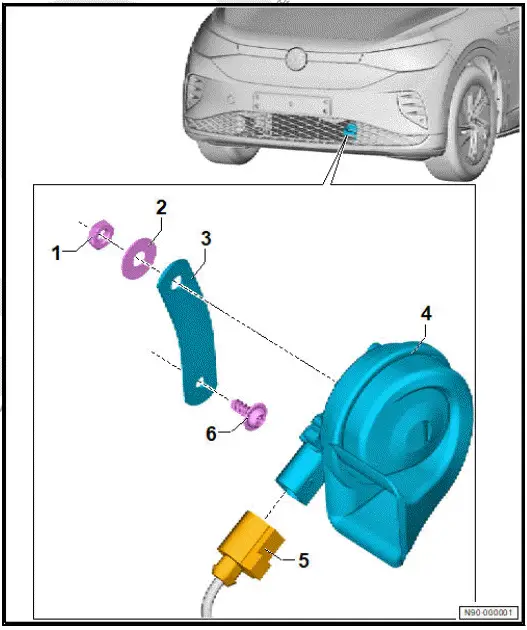

Assembly overview - horn

1. Nut

• 14 Nm

2. Washer
3. Bracket for horn or dual tone horn - H1-
4. Horn or dual tone horn - H1-

• ⇒ Rep. gr. 90 ; Removing and installing horn or dual tone horn [H1]

5. Electrical connector
6. Bolt

• 6 Nm

Removing and installing horn or dual tone horn [H1]

The horn or dual tone horn - H1- will henceforth be referred to as "horn".

Removing

• Remove bumper cover ⇒ General body repairs, exterior; Rep. gr. 63 ; Front bumper; Removing and installing bumper cover .
• Unscrew bolt -3-.
• Remove horn -2-.
• Disconnect electrical connector -1-.
• Remove horn -2-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

• ⇒ Rep. gr. 90 ; Assembly overview - horn
