Volkswagen ID.4: Luggage compartment cover

When opening and closing the trunk lid, the luggage compartment cover is raised or lowered on the attached retaining straps.

The luggage compartment cover is not suitable for use as storage for objects, even lightweight items of clothing→ .

WARNING

Objects or animals on the luggage compartment cover can damage the luggage compartment cover and cause serious injury or death in the event of sudden driving and braking maneuvers or an accident.

• Never transport objects on the luggage compartment cover.
• Never allow animals to ride on the luggage compartment cover.

NOTICE

Incorrect handling of the luggage compartment cover can cause damage.

• Do not load the luggage compartment so high that the luggage compartment cover presses on the load when the trunk lid is closed.
• Never close the trunk lid while the luggage compartment floor is open or locked.

Installing and removing the luggage compartment cover

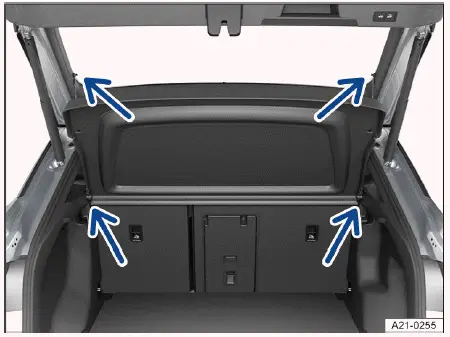

Fig. 1 In the luggage compartment: Installing and removing the luggage compartment cover.

Removing the luggage compartment cover

1. Unhook the top retaining straps from the trunk lid→ fig. 1 (upper arrows).

2. Lift the trunk lid.

3. Press the luggage compartment cover out of the lateral brackets in the luggage compartment→ fig. 1 (lower arrows).

Installing the luggage compartment cover

1. Press the luggage compartment cover into the side holders in the luggage compartment→ fig. 1 (lower arrows).

2. Hook the retaining straps onto the trunk lid → fig. 1 (upper arrows).

Opening and closing the luggage compartment floor

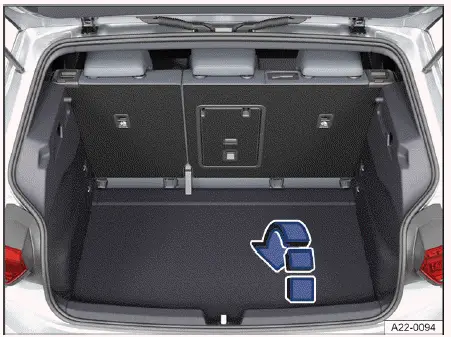

Fig. 1 In the luggage compartment: Luggage compartment floor (general example).

The rear part of the luggage compartment floor can be folded forwards. Underneath, there is a storage compartment, e.g. for the tool box.

Opening the luggage compartment floor

1. Grasp the recessed grip in the luggage compartment floor and lift up the rear part of the luggage compartment floor in the direction of the arrow → fig. 1.

Closing the luggage compartment floor

1. Fold the luggage compartment floor downward in the opposite direction to the arrow.

NOTICE

Improper use may damage the luggage compartment floor or the luggage compartment trim.

• When closing the luggage compartment floor, always carefully guide it downward, and do not drop it.
• Always distribute loads as evenly as possible across the entire luggage compartment floor to avoid concentrating the load in a single place.
