Volkswagen ID.4: Second luggage compartment floor - functions

Volkswagen ID.4 2021-2024 (E21) Owners Manual / Second luggage compartment floor - functions

Depending on the vehicle equipment, the vehicle may have a height-adjustable second luggage compartment floor.

Opening the second luggage compartment floor

Volkswagen ID.4 - Fig. 1 In the luggage compartment: Opening the second

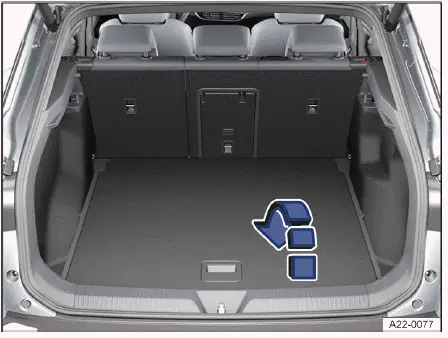

Fig. 1 In the luggage compartment: Opening the second luggage compartment floor.

1. Hold the handle → fig. 1 -1- and fold the rear part of the luggage compartment floor forward in the direction of the arrow.

If the luggage compartment floor is in the bottom position, the rear part will come into contact with the sides of the luggage compartment when it is opened and must be pushed through some resistance.

Closing the second luggage compartment floor

1. Fold back the luggage compartment floor and carefully lay it down.

Adjusting the height of the second luggage compartment floor

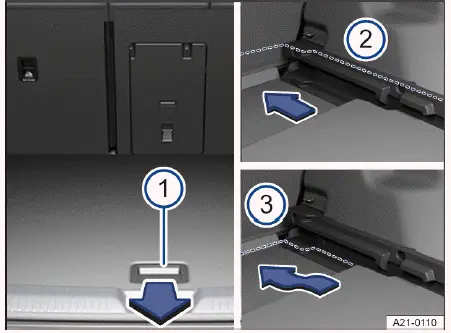

Fig. 2 In the luggage compartment: Adjusting the height of the second luggage compartment floor.

  1. Recessed grip on the luggage compartment floor.
  2. Upper guides on the luggage compartment side.
  3. Lower guides on the luggage compartment side.

The second luggage compartment floor can be placed in the top and bottom position:

1. Lift the luggage compartment floor using the handle → fig. 2 -1- and pull it backward in the direction of the arrow and out of the guides on the sides of the luggage compartment.

2. Insert the luggage compartment floor into the guides at the desired height→ fig. 2 -2- or -3- and push it forward as far as it will go.

NOTICE

Improper use may damage the second luggage compartment floor or the luggage compartment trim.

  • When closing the second luggage compartment floor, always carefully guide it downward, and do not drop it.
  • Always distribute loads (max. 50 kg (110 lbs) ) as evenly as possible across the luggage compartment floor to avoid concentrating the load in a single place.
  • Only transport heavy loads if the luggage compartment floor is in the lower position.

Volkswagen recommends tying down objects to the tie-downs using fixation belts or tensioning straps.
