Volkswagen ID.4: Multifunction steering wheel

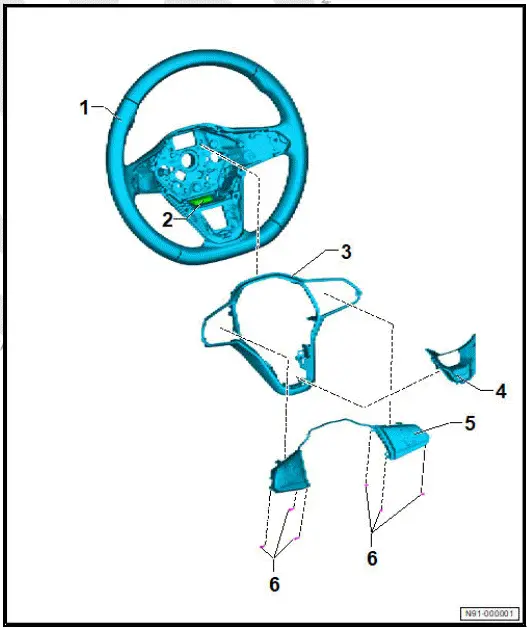

Assembly overview - multifunction steering wheel

1. Steering wheel

• ⇒ Running gear, axles, steering; Rep.

  gr. 48 ; Steering wheel; Removing and installing steering wheel

2. Controlr steering wheel co unit fontact detection - J1158-

• Depending on equipment/ version
• ⇒ Rep. gr. 91 ; Removing and installing control unit for steering wheel contact detection [J1158]

3. Trim panel

• ⇒ Rep. gr. 91 ; Removing and installing multifunction buttons [E440]/[E441]

4. Trim panel at bottom

• Allocation: Electronic parts catalogue (ETKA)
• ⇒ Rep. gr. 91 ; Removing and installing multifunction buttons [E440]/[E441]

5. Multifunction buttons in steering wheel

• With multifunction buttons on left in steering wheel - E440- With multifunction steering wheel control unit - J453-
• With multifunction buttons on right in steering wheel - E441-
• ⇒ Rep. gr. 91 ; Removing and installing multifunction buttons [E440]/[E441]

6. Bolt

• Qty. 6
• 1.2 Nm
