Volkswagen ID.4: Roof

• Assembly overview - vehicle without glass panel
• Assembly overview - roof side member
• Renewing roof - vehicle without glass panel
• Renewing roof - vehicle with glass panel
• Renewing roof side member

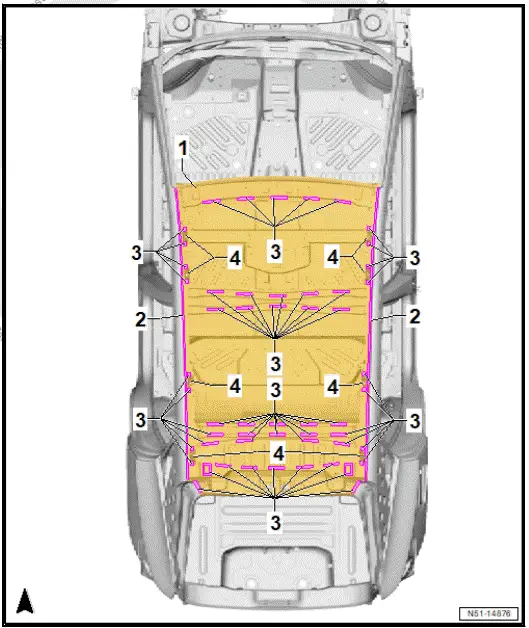

Assembly overview - vehicle without glass panel

1. Roof

• ⇒ Rep. gr. 51; Renewing roof - vehicle without glass panel

2. Laser brazing seams
3. Bonded areas
4. Roof railing holder

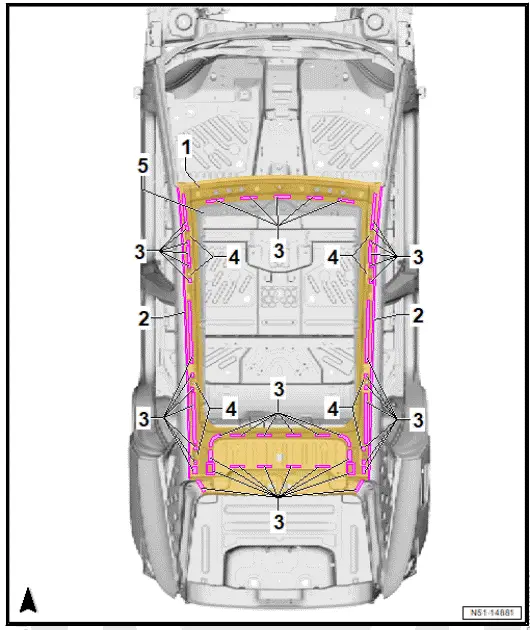

Assembly overview - vehicle with glass panel

1. Roof

• ⇒ Rep. gr. 51; Renewing roof - vehicle with glass panel

2. Laser brazing seams
3. Bonded areas
4. Roof railing holder
5. Glass panel reinforcement frame

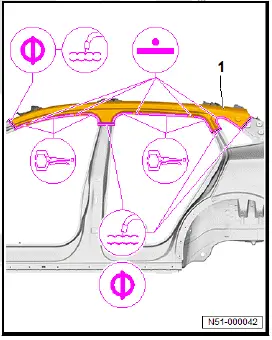

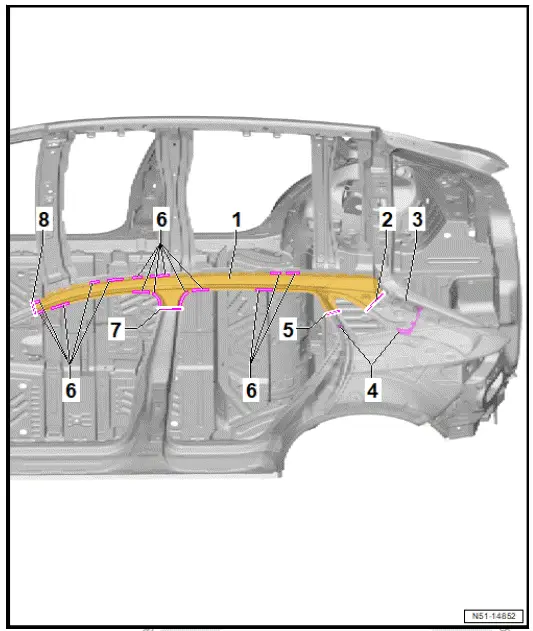

Assembly overview - roof side member

Overview shown for left side of vehicle as an example

1. Roof side member

• ⇒ Rep. gr. 51; Renewing roof side member

2. Separating cut

• Parting cut can be combined with others in cases where extent of damage requires multiple cuts.

3. Gas strut reinforcement
4. Moulded foam inserts

• ⇒ Rep. gr. 00; Moulded foam inserts

5. Separating cut

• Parting cut can be combined with others in cases where extent of damage requires multiple cuts.

6. Bonded area
7. Separating cut

• Parting cut can be combined with others in cases where extent of damage requires multiple cuts.

8. Separating cut

• Parting cut can be combined with others in cases where extent of damage requires multiple cuts.

Renewing roof - vehicle without glass panel

WARNING

Gases/vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

• Do not weld, solder or cut closer than 15 mm to moulded foam inserts.
• Use an extraction system during work

NOTICE

If separating cuts are made too deep, underlying reinforcement could be damaged.

• Only make separating cuts with body saw.
• Rewelding of reinforcements is not permitted due to safety reasons.

NOTICE

If welds are positioned too far on outside, strength could be impaired

• RP weld points must be placed as far as possible from outer edge of welding flange.

NOTICE

If adhesive is applied prematurely, bond could be impaired

• New part must be welded in within 90 minutes.

NOTICE

Bonding properties of adhesive may be impaired if adhesive components are not hardened sufficiently.

• After bonding, the vehicle must not be moved and left at room temperature (at least 15ºC) for 8 to 10 hours.
• During this time, the vehicle must be standing on a level surface.

Observe safety information ⇒ Rep. gr. 00; Safety information Only tools and workshop equipment authorised by Volkswagen AG may be used ⇒ 2.1

Removing

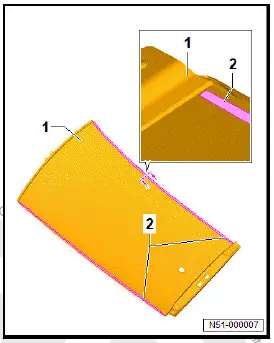

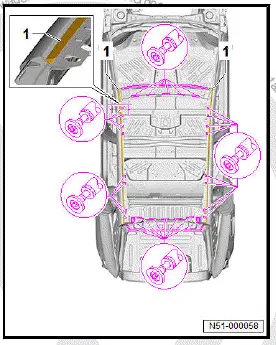

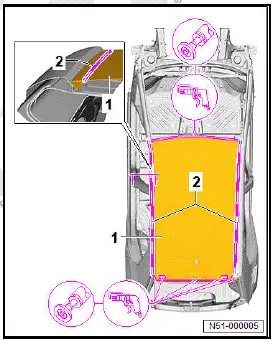

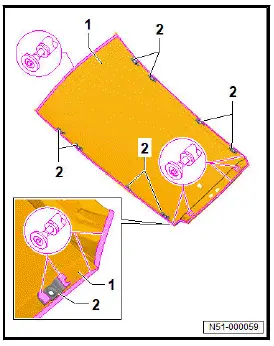

• Apply duct tape to left and right roof members parallel to laser brazing seams.

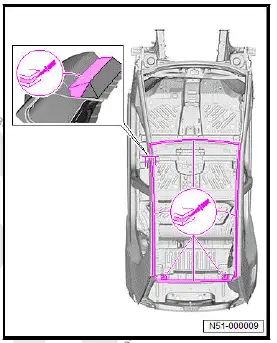

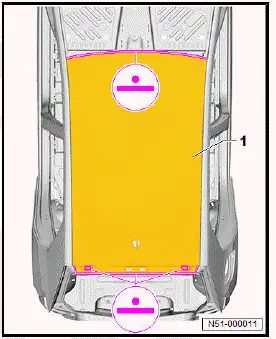

• Roughly cut roof -1- out parallel to laser solder seams -2-.

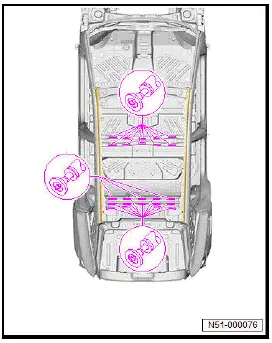

• Separate original joint.
• Remove roof -1-.
• Remove remaining material -1-. Do not damage roof side member.

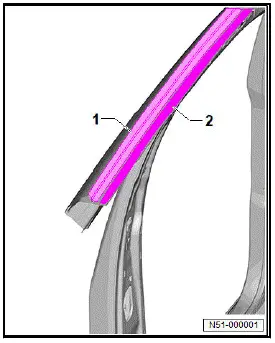

• Carefully remove remaining material of laser soldered seam from left and right roof side members.
• Completely remove remaining adhesive.
• Grind bonding surfaces and welding surfaces back to bare metal and clean.
• Apply corrosion protection measures to left and right roof side members ⇒ Body, General paint information, Technical data, General information; Pre-treatment of bonded surfaces using 2-component epoxy filler when replacing laser-welded roofs.
• Completely remove remaining adhesive.

• Grind bonding surfaces and welding surfaces back to bare metal and clean.
• Apply corrosion protection measures ⇒ Body, General paint information, Technical data, General information; Pre-treatment of bonded surfaces using 2-component epoxy filler when replacing laser-welded roofs.
• Grind bonding surface for 2-pack body adhesive -1- down to bare metal and clean.

• Implement corrosion protection measures on sand-through spots of bonding surface for 1-component assembly adhesive -2- General paint information - passenger vehicles; Repair group 00; General information; Pre-treatment of bonding surfaces when renewing laser-welded roofs.
• Apply glass/paint primer to bonding surface for 1-pack assembly adhesive -2-.

Installing

Replacement parts

• For allocation of 1-pack assembly adhesive, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of 2-pack body adhesive, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of adhesive sealant, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of glass/paint primer, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of felt strips, see ⇒ Electronic parts catalogue (ETKA)

Important

• Adhesive sealants must be applied quickly.
• It is essential to take account of the processing time (pot life) of adhesives.

Important

• New parts must be adapted and attached with the vehicle standing on its wheels or straightening bracket set.

• Grind welding surfaces and bonding surfaces on new part -1- and -2- down to bare metal and clean.

• Clean bonding surfaces -2- for 1-component assembly adhesive parallel to roof flange on left and right of new part -1-.

• Apply glass/paint primer to bonding surfaces -2- for 1-pack assembly adhesive.
• Cut approx. 2 mm off nozzle -B- to provide appropriate bead geometry.

• Apply 1-component assembly adhesive to roof cross member.

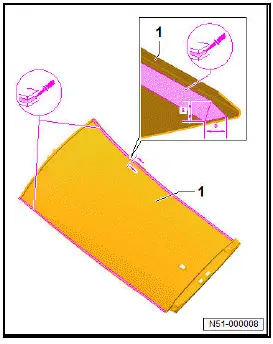

• Apply 1-component assembly adhesive to left and right roof side members according to dimensions -a-, -b- and -c-.

• Dimension -a- = 3 mm
• Dimension -b- = 10 mm
• Dimension -c- = 14 mm

• Apply 1-component assembly adhesive to inside of new part -1- parallel to roof flange on left and right according to dimensions -a- and -b-.

• Dimension -a- = 14 mm
• Dimension -b- = 12 mm

• Cut off first step of static mixer -A- to achieve corresponding bead cross-section.

• Carefully operate double cartridge gun without static mixer until 2-component body adhesive is discharged uniformly from both chambers of connecting piece.
• Screw static mixer onto connecting piece.
• Discharge the first 100 mm of 2-component body adhesive onto a piece of cardboard and only then begin to apply the adhesive to the vehicle.
• Fill 2-component body adhesive in area of roof side members.

• Apply 2-component body adhesive to entire surface.
• Completely coat flanges of new part -1- with 2-component body adhesive.

• Apply 2-component body adhesive to entire surface of new part -2-.
• Adapt new part -1- to fit and fix in position

NOTICE

Risk of damage from overtensioning

• Do not overtighten tensioning straps.

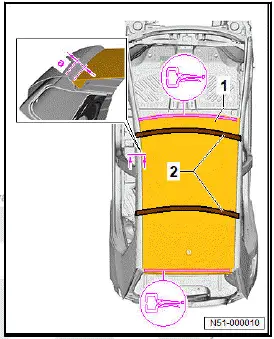

• In areas shown, tension tensioning straps -2- transversely over roof to vary height of roof.
•  Check dimension -a- on roof to roof side members.

Dimension -a- = 6.0 mm +-0.5 mm

• Fix position of new part -1- on front roof cross member and rear roof cross member using mole grips.
• If necessary, place felt strips underneath for compensation.
• Remove surplus 2-component body adhesive immediately.

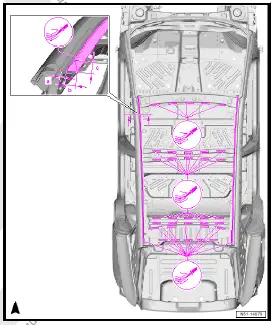

• Weld in new part -1-, RP spot weld seam.

• Remove surplus 2-component body adhesive -4- immediately.
• Apply a thin coat of adhesive sealant onto seam between new part -1- and roof side member -5- to form a fine seam seal -2-.
• Adhesive bead -3- must seal off the interior.

Renewing roof - vehicle with glass panel

WARNING

Gases/vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

• Do not weld, solder or cut closer than 15 mm to moulded foam inserts.
• Use an extraction system during work.

NOTICE

If separating cuts are made too deep, underlying reinforcement could be damaged.

• Only make separating cuts with body saw.
• Rewelding of reinforcements is not permitted due to safety reasons.

NOTICE

If welds are positioned too far on outside, strength could be impaired

• RP weld points must be placed as far as possible from outer edge of welding flange.

NOTICE

If adhesive is applied prematurely, bond could be impaired

• New part must be welded in within 90 minutes.

NOTICE

Bonding properties of adhesive may be impaired if adhesive components are not hardened sufficiently.

• After bonding, the vehicle must not be moved and left at room temperature (at least 15ºC) for 8 to 10 hours.
• During this time, the vehicle must be standing on a level surface.

Observe safety information ⇒ Rep. gr. 00; Safety information Only tools and workshop equipment authorised by Volkswagen AG may be used ⇒ 2.1

Removing

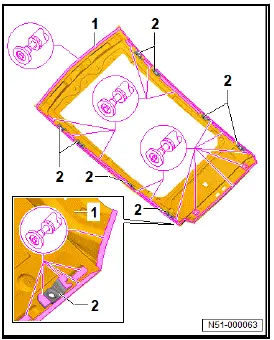

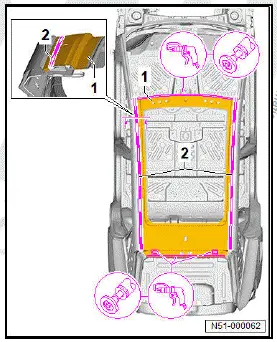

• Apply duct tape to left and right roof members parallel to laser brazing seams.

• Roughly cut roof -1- out parallel to laser solder seams -2-.

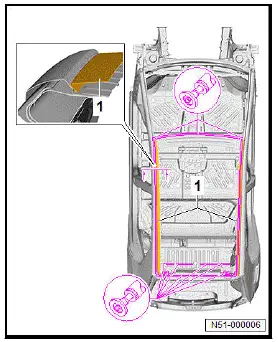

• Separate original joint.
• Remove roof -1-.

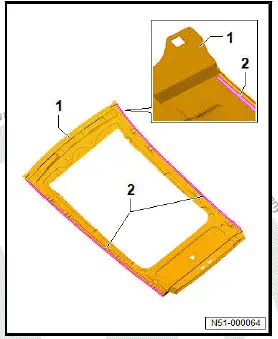

• Remove remaining material -1-. Do not damage roof side member.

• Carefully remove remaining material of laser soldered seam from left and right roof side members.
• Completely remove remaining adhesive.
• Grind bonding surfaces and welding surfaces back to bare metal and clean.
• Apply corrosion protection measures to left and right roof side members ⇒ Body, General paint information, Technical data, General information; Pre-treatment of bonded surfaces using 2-component epoxy filler when replacing laser-welded roofs.
• Grind bonding surface for 2-pack body adhesive -1- down to bare metal and clean.

• Implement corrosion protection measures on sand-through spots of bonding surface for 1-component assembly adhesive -2- General paint information - passenger vehicles; Repair group 00; General information; Pre-treatment of bonding surfaces when renewing laser-welded roofs.
• Apply glass/paint primer to bonding surface for 1-pack assembly adhesive -2-.

Installing

Replacement parts

• For allocation of 1-pack assembly adhesive, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of 2-pack body adhesive, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of adhesive sealant, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of glass/paint primer, see ⇒ Electronic parts catalogue (ETKA)
• For allocation of felt strips, see ⇒ Electronic parts catalogue (ETKA).

Important

• Adhesive sealants must be applied quickly.
• It is essential to take account of the processing time (pot life) of adhesives.

Important

• New parts must be adapted and attached with the vehicle standing on its wheels or straightening bracket set.
• Grind welding surfaces and bonding surfaces on new part -1- and -2- down to bare metal and clean.

• Clean bonding surfaces -2- for 1-component assembly adhesive parallel to roof flange on left and right of new part -1-.

• Apply glass/paint primer to bonding surfaces -2- for 1-pack assembly adhesive.
• Cut approx. 2 mm off nozzle -B- to provide appropriate bead geometry.

• Apply 1-component assembly adhesive to roof cross member.

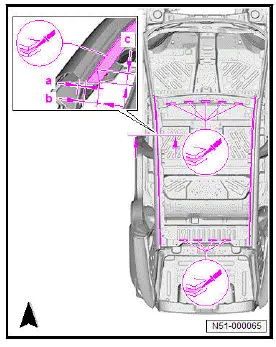

• Apply 1-component assembly adhesive to left and right roof side members according to dimensions -a-, -b- and -c-.

• Dimension -a- = 3 mm
• Dimension -b- = 10 mm
• Dimension -c- = 14 mm

• Apply 1-component assembly adhesive to inside of new part -1- parallel to roof flange on left and right according to dimensions -a- and -b-.

• Dimension -a- = 14 mm
• Dimension -b- = 12 mm

• Cut off first step of static mixer -A- to achieve corresponding bead cross-section.

• Carefully operate double cartridge gun without static mixer until 2-component body adhesive is discharged uniformly from both chambers of connecting piece.
• Screw static mixer onto connecting piece.
• Discharge the first 100 mm of 2-component body adhesive onto a piece of cardboard and only then begin to apply the adhesive to the vehicle.

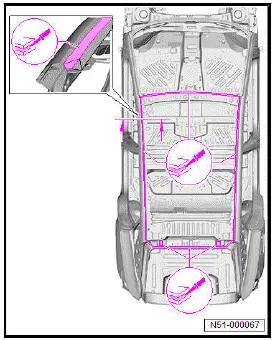

• Fill 2-component body adhesive in area of roof side members.

• Apply 2-component body adhesive to entire surface.
• Completely coat flanges of new part -1- with 2-component body adhesive

• Apply 2-component body adhesive to entire surface of new part -2-.

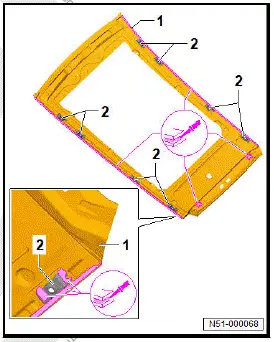

• Adapt new part -1- to fit and fix in position.

NOTICE

Risk of damage from overtensioning

• Do not overtighten tensioning straps.

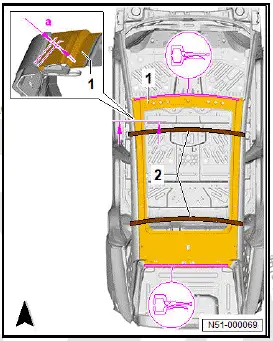

• In areas shown, tension tensioning straps -2- transversely over roof to vary height of roof.
• Check dimension -a- on roof to roof side members.

• Dimension -a- = 6.0 mm +-0.5 mm

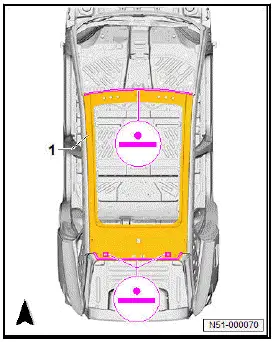

• Fix position of new part -1- on front roof cross member and rear roof cross member using mole grips.
• If necessary, place felt strips underneath for compensation.
• Remove surplus 2-component body adhesive immediately.
• Weld in new part -1-, RP spot weld seam.

• Remove surplus 2-component body adhesive immediately.

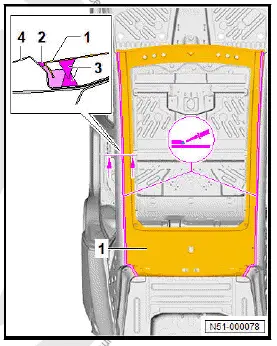

• Apply a thin coat of adhesive sealant onto seam between new part -1- and roof side member -4- to form a fine seam seal -2-.
• Adhesive bead -3- must seal off the interior.

Renewing roof side member

WARNING

Gases/vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

• Do not weld, solder or cut closer than 15 mm to moulded foam inserts.
•  Use an extraction system during work.

NOTICE

Do not damage underlying reinforcements.

Rewelding of reinforcement is not permitted due to safety reasons.

NOTICE

If welds are positioned too far on outside, strength could be impaired

• RP weld points must be placed as far as possible from outer edge of welding flange.

NOTICE

If adhesive is applied prematurely, bond could be impaired

• New part must be welded in within 90 minutes.

NOTICE

Bonding properties of adhesive may be impaired if adhesive components are not hardened sufficiently.

• After bonding, the vehicle must not be moved and left at room temperature (at least 15ºC) for 8 to 10 hours.
• During this time, the vehicle must be standing on a level surface.

Observe safety information ⇒ Rep. gr. 00; Safety information Only tools and workshop equipment authorised by Volkswagen AG may be used ⇒ 2.1

Removal and installation are described for left side of vehicle as an example.

Removing

Roof removed (without glass panel) ⇒ Rep. gr. 51; Renewing roof - vehicle without glass panel.

Roof removed (with glass panel) ⇒ Rep. gr. 51; Renewing roof - vehicle with glass panel.

Permitted separating cuts on complete side panel ⇒ Rep.

gr. 53; Permitted separating cuts on side panel

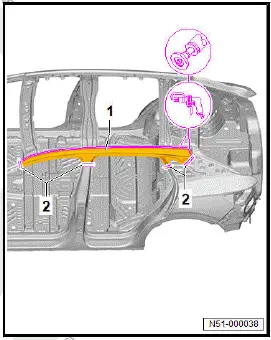

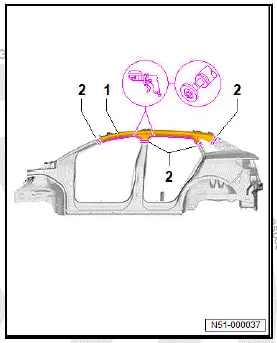

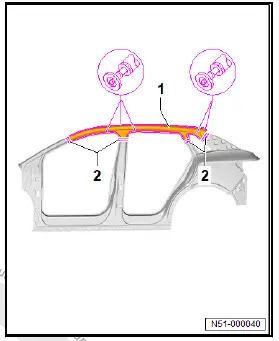

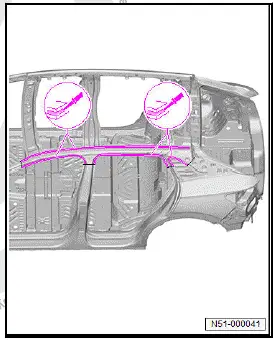

• Make separating cuts -2- as shown in straight line.

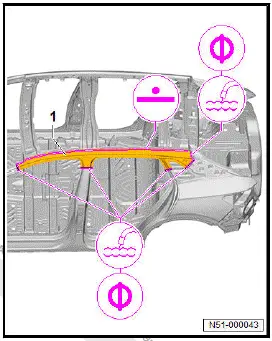

• Separate original joint on roof side member -1-.

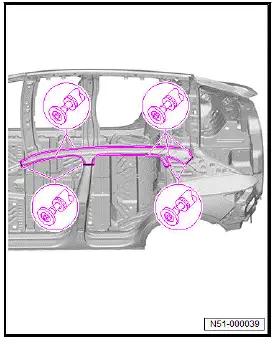

• Make separating cuts -2- as shown in straight line.

• Separate original joint.
• Remove roof side member -1-.
• Remove remaining material.

• Completely remove remaining adhesive.
• Grind bonding surfaces and welding surfaces back to bare metal and clean.

Installing

Replacement parts

• For allocation of 2-pack body adhesive, see ⇒ Electronic parts catalogue (ETKA)

Important

• New parts must be adapted and attached with the vehicle standing on its wheels or straightening bracket set.
• Transfer separating cut -2- to new part -1-, and cut in a straight line.

• Grind bonding
•  Apply 2-component body adhesive to entire surface.

• Adapt new part -1- to fit and fix in position.

• Check fit with add-on parts.
• Weld in new part -1-, RP spot weld seam.
• Weld parting cuts (either MIG solder seam or SG stepped weld seam).
• Check fit with add-on parts.

• Fix new part -1- in position in area of door apertures using mole grips.
• Weld in new part -1-, RP spot weld seam.
• Weld parting cuts (either MIG solder seam or SG stepped weld seam).
• Install roof (without glass panel) ⇒ Rep. gr. 51; Renewing roof - vehicle without glass panel.
• Install roof (with glass panel) ⇒ Rep. gr. 51; Renewing roof - vehicle with glass panel.
