Volkswagen ID.4: Body - rear

Safety information and repair notes

Safety information

Observe safety information ⇒ Safety information and repair notes; Rep. gr. 00; Safety information.

Repair instructions

Observe repair instructions ⇒ Safety and repair instructions; Rep. gr. 00; Repair instructions.

Overview of fitting locations

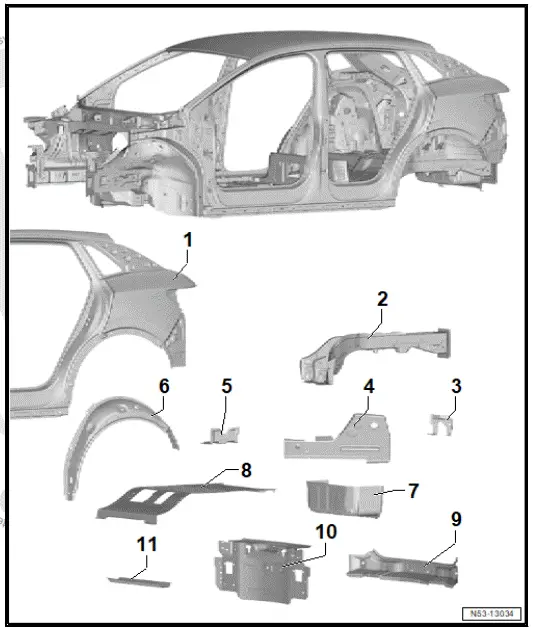

Overview of fitting locations - rear of body

1. Side panel

• ⇒ Rep. gr. 53; Assembly overview - side panel ⇒ Rep. gr. 53; Renewing side panel, part section

2. Longitudinal member

• ⇒ Rep. gr. 53; Assembly overview - rear longitudinal member, part section ⇒ Rep.

  gr. 53; Assembly overview - rear longitudinal member, part section (second separating cut) ⇒ Rep. gr. 53; Renewing rear longitudinal member, part section ⇒ Rep. gr. 53; Renewing rear longitudinal member, part section (second separating cut)

3. Sealing channel support

• ⇒ Rep. gr. 53; Assembly overview - sealing channel support ⇒ Rep.

  gr. 53; Renewing sealing channel support

4. Longitudinal member cover plate

• ⇒ Rep. gr. 53; Assembly overview - longitudinal member cover plate ⇒ Rep. gr. 53; Renewing longitudinal member cover plate

5.  Floor panel reinforcement

• ⇒ Rep. gr. 53; Assembly overview - floor panel reinforcement ⇒ Rep. gr. 53; Renewing floor panel reinforcement

6. Outer wheel housing

• ⇒ Rep. gr. 53; Assembly overview - rear wheel housing ⇒ Rep. gr. 53; Renewing rear wheel housing

7. Rear luggage compartment floor

• ⇒ Rep. gr. 53; Assembly overview - rear luggage compartment floor ⇒ Rep. gr. 53; Renewing rear luggage compartment floor

8. Centre luggage compartment floor

• ⇒ Rep. gr. 53; Assembly overview - centre luggage compartment floor ⇒ Rep. gr. 53; Renewing centre luggage compartment floor

9. Rear cross member

• ⇒ Rep. gr. 53; Assembly overview - rear cross member ⇒ Rep. gr. 53; Renewing rear cross member

10. Rear apron

• ⇒ Rep. gr. 53; Assembly overview - rear apron ⇒ Rep. gr. 53; Renewing rear apron

11. Luggage compartment floor rear cross member

• ⇒ Rep. gr. 53; Assembly overview - luggage compartment floor cross member ⇒ Rep. gr. 53; Renewing luggage compartment floor cross member

• Rear cross member
• Rear cross panel
• Luggage compartment floor
• Rear longitudinal member
• Side panel
• Rear wheel housing

Side memberRear cross member
