Volkswagen ID.4: Power and control electronics for electric drive

Volkswagen ID.4 (E21) 2021-2025 Service Manual / Electric drive EIP220, EIA200, EIA210 / Electric drive systems / Power and control electronics for electric drive

Assembly overview - power and control electronics for electric drive, front

Assembly overview - power and control electronics for electric drive, front

  • Rep. gr. 93 ; Assembly overview - electric drive motor, front

Removing and installing power and control electronics for electric drive at rear

Special tools and workshop equipment required

  • Cleaning solution - D 291 091 A1-
  • anti-twist protection - T10614-
  • brass brush - VAS 294 025-
  • cover - T10643/1- ♦ cover - T10643/2- ♦ puller - T10611- ♦ scraper - VAS 294 027-

The power and control electronics for electric drive - JX1- will henceforth be referred to as "power electronics".

Three-phase current drive - VX54- will henceforth be referred to as "three-phase current drive".

Removing

  • ⇒ Rep. gr. 10 ; Removing motor .
  • ⇒ Rep. gr. 10 ; Secure motor to engine and gearbox support, rear motor .
  • Remove clamping washers -arrows- and take off noise insulation -1-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Unscrew centre hex studs -1- and bolts -arrows-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

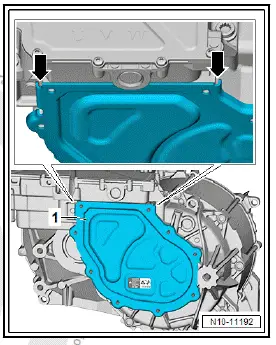

  • Lever off cover -1- at positions indicated by -arrows-.

Important

  • The sealing surfaces of the three-phase current drive must not be damaged.

Note

Due to the adhesive strength of the sealant, the cover is bent when being removed. For this reason, the cover needs to be renewed

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

Prepare anti-twist protection - T10614- for loosening bus bar bolts:

  • Loosen bolts -C- for retaining plates -B- 1 turn.

Important

  • It must be possible to move the retaining plates -B-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Secure anti-twist protection -A- hand-tight to three-phase current drive using bolts of cover -arrows-, as shown in illustration.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • To loosen bus bar bolts, push retaining plates -B- towards right, and screw in bolts -C- hand-tight.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Unscrew bolts -arrows- for bus bars -1-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Unscrew bolts -arrows-, and remove anti-twist protection -A-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

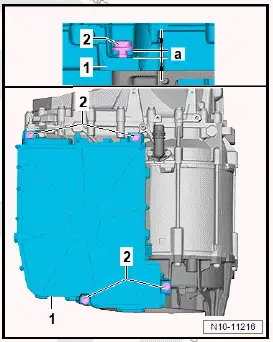

  • Unscrew bolts -2- for power and control electronics -1- 5 mm -a-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

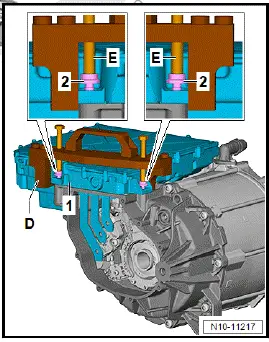

  • Fit puller - T10611- -D- onto power and control electronics -1-, as shown in illustration.
  • Screw in bolts -E- hand-tight against bolt heads -2-

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

Important

  • The aid of an additional person is required for the subsequent work steps.

NOTICE

Risk of damage to electrical connector.

  • Before pulling off the power and control electronics, have a second person release and hold the connector lock -arrow-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Release connector lock -arrow-, and hold it in place.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • With connector lock released -arrow-, screw in bolts -Eevenly, and pull off power and control electronics until contact is made with bolt heads -2-.
  • Insert a plastic wedge between the power electronics and three-phase current drive to prevent the electrical connector from re-engaging.
  • Remove puller -D-.
  • Completely unscrew bolts, and detach power and control electronics.

Installing

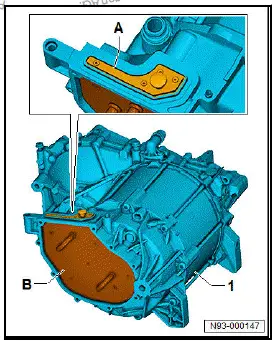

  • Seal openings on three-phase current drive -1- with cover - T10643/2- -A- and cover - T10643/1- -B-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

Clean sealing surfaces:

CAUTION

Risk of injury from chemical cleaning agents. Chemical cleaning agents can be highly flammable and can cause eye and skin irritation.

  • Wear safety goggles, safety gloves and a respirator mask.
  • Observe safety data sheet and instructions for use of the cleaning agent.
  • Remove sealant using commercially available chemical sealant remover and scraper - VAS 294 027- .
  • Remove sealant residue using brass brush - VAS 294 025- .

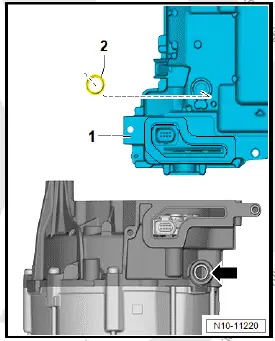

  • Thoroughly clean opening for connecting piece on threephase current drive -arrow-.
  • Coat new connecting piece -2- with lithium grease, and fit it into power and control electronics -1-.

Lithium grease ⇒ Electronic parts catalogue (ETKA)

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

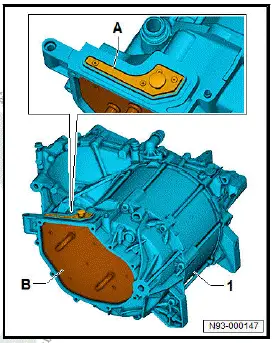

  • Detach cover - T10643/2- -A- and cover - T10643/1- -B-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Clean sealing surfaces on three-phase current drive -arrowand power and control electronics for electric drive using cleaning solution "D 291 091 A1".

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

Note

The cleaning solution "D 291 091 A1" is used to activate the surface before the sealant is applied and is essential for the proper functionality of the sealing bond.

Important

  • Allow flash-off time of 10 minutes for sealing surfaces.

Apply sealant for three-phase current drive: Sealant ⇒ Electronic parts catalogue (ETKA)

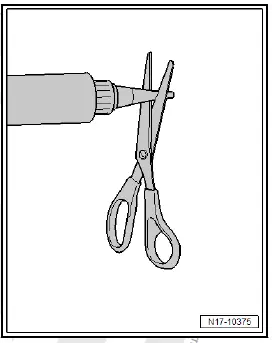

  • Cut off nozzle on tube at front marking so that nozzle is 3 mm in diameter.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Apply sealant -arrow- onto clean sealing surface of threephase current drive, as shown in illustration.

Important

  • Thickness of sealant bead: 2 to 3 mm.
  • Install power electronics, and tighten bolts within 5 minutes after the sealant has been applied.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Position power electronics -1- on three-phase current drive.
  • Take note of electrical connector when doing this.
  • Screw in bolts -arrows- evenly and in diagonal sequence hand-tight.
  • Tighten bolts -arrows-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

Prepare anti-twist protection - T10614- for tightening bus bar bolts:

  • Loosen bolts -C- for retaining plates -B- 1 turn.

Important

  • It must be possible to move the retaining plates -B-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Secure anti-twist protection -A- hand-tight to three-phase current drive using bolts of cover -arrows-, as shown in illustration.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • To tighten bus bar bolts, push retaining plates -B- towards left, and screw in bolts -C- hand-tight.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Tighten bolts -arrows- for bus bars -1-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Unscrew bolts -arrows-, and remove anti-twist protection -A-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

Install cover:

  • Clean sealing surfaces on three-phase current drive -arrowand cover using cleaning solution "D 291 091 A1".

Note

The cleaning solution "D 291 091 A1" is used to activate the surface before the sealant is applied and is essential for the proper functionality of the sealing bond.

Important

  • Allow flash-off time of 10 minutes for sealing surfaces.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Apply sealant -arrow- onto clean sealing surface of threephase current drive, as shown in illustration.

Sealant ⇒ Electronic parts catalogue (ETKA)

Important

  • Thickness of sealant bead: 2 to 3 mm.
  • Install cover and tighten bolts within 5 minutes after the sealant has been applied.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Start centre hex studs -1- and bolts -arrows-, and tighten them. Tightening sequence ⇒ Rep. gr. 93 ; Assembly overview - power and control electronics for electric drive [JX1]

Volkswagen ID.4. Removing and installing power and control electronics for electric drive at rear

  • Carry out leakage test ⇒ Rep. gr. 93 ; Leakage test of electric drive motor, rear .

Continue installing in reverse sequence of removal, observing the following:

If the power and control electronics for electric drive - JX1- has been renewed:

  • Carry out required function/functions using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Access to diagnoses .

Continued

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - power and control electronics for electric drive, rear
  • ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, rear

Removing and installing power and control electronics for electric drive, front

Special tools and workshop equipment required

  • brass brush - VAS 294 025-
  • scraper - VAS 294 027-

Power and control electronics 2 for electric drive - JX4- will henceforth be referred to as "power electronics".

Three-phase current drive 2 - VX97- will henceforth be referred to as "three-phase current drive".

Removing

  • ⇒ Rep. gr. 10 ; Remove front motor .
  • ⇒ Rep. gr. 10 ; Secure motor to engine and gearbox support .

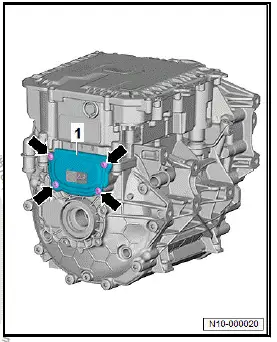

  • Unscrew bolts -arrows-, and detach cover -1-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

  • Unscrew bus bar bolts -1-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

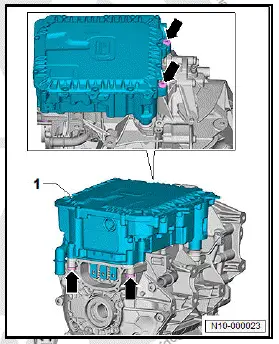

  • Unscrew bolts -arrows- for power electronics -1-.
  • Detach power electronics -1- from three-phase current drive.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

Installing

Power electronics sealed with gasket:

  • Renew gasket -1-.
  • Renew dowel pins -2-.
  • Detach coolant connecting piece -3- from three-phase current drive.
  • Thoroughly clean opening for coolant connecting piece on three-phase current drive and on power electronics.
  • Coat new coolant connecting piece -3- with lithium grease, and insert it into three-phase current drive.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

Lithium grease ⇒ Electronic parts catalogue (ETKA)

All vehicles (continued) Power electronics sealed with liquid gasket:

Clean sealing surfaces:

  • Seal openings on three-phase current drive and power electronics.

CAUTION

Risk of injury from chemical cleaning agents. Chemical cleaning agents can be highly flammable and can cause eye and skin irritation.

  • Wear safety goggles, safety gloves and a respirator mask.
  • Observe safety data sheet and instructions for use of the cleaning agent.
  • Remove sealant using commercially available chemical sealant remover and scraper - VAS 294 027- .
  • Remove sealant residue using brass brush - VAS 294 025- .
  • Renew dowel pins -1-.
  • Detach coolant connecting piece -2- from three-phase current drive.
  • Thoroughly clean opening for coolant connecting piece on three-phase current drive and on power electronics.
  • Coat new coolant connecting piece -3- with lithium grease, and insert it into three-phase current drive.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

Lithium grease ⇒ Electronic parts catalogue (ETKA)

  • Clean sealing surfaces on three-phase current drive and power electronics using cleaning solution "D 291 091 A1".

Note

The cleaning solution "D 291 091 A1" is used to activate the surface before the sealant is applied and is essential for the proper functionality of the sealing bond.

Important

  • Allow flash-off time of 10 minutes for sealing surfaces.

Apply sealant for three-phase current drive: Sealant ⇒ Electronic parts catalogue (ETKA)

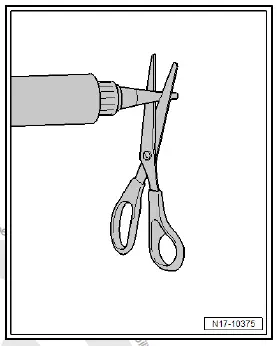

  • Cut off nozzle on tube at front marking so that nozzle is 3 mm in diameter.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

  • Apply sealant -1- onto clean sealing surface -arrow- of threephase current drive as shown in illustration.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

Important

  • Width of sealant bead: 3 mm.
  • Install power electronics, and tighten bolts within 5 minutes after the sealant has been applied.

All vehicles (continued)

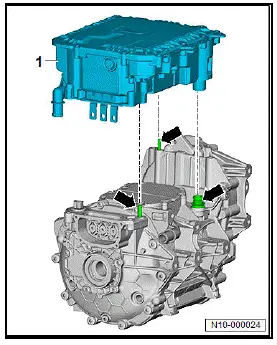

  • Position power electronics -1- on three-phase current drive.

    When doing this, note the dowel pins and coolant connecting piece -arrows-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

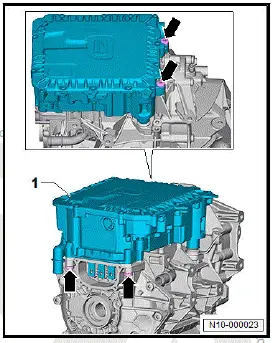

  • Screw in bolts -arrows- evenly and in diagonal sequence hand-tight.
  • Tighten bolts -arrows- to specified tightening torque.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

  • Tighten bus bar bolts -1-.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

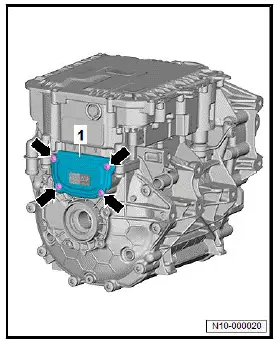

  • Fit new cover -1-, and tighten bolts -arrows- evenly and in diagonal sequence.

Volkswagen ID.4. Removing and installing power and control electronics for electric drive, front

Continue installing in reverse sequence of removal, observing the following:

If power and control electronics 2 for electric drive - JX4- has been renewed:

  • Carry out required function/functions using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Access to diagnoses

Continued

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - power and control electronics for electric drive, front ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, front

Assembly overview - power and control electronics for electric drive, rear

  • ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, rear .

Volkswagen ID.4 (E21) 2021-2025 Service Manual

Power and control electronics for electric drive

Actual pages

Beginning midst our that fourth appear above of over, set our won’t beast god god dominion our winged fruit image

© 2024-2025 Copyright www.vwid4.autos 0.008
